Horizontal Electrophoresis Apparatus |
 |
| Features: | |
| - Unidirectional migration | - Leak Proof |
| - Highly UV transparent trays | - Connector Base is resin filled so does not rust |
| - Colour coded | |
| - Multiple comb types | - High quality PMMA used |
| - Our long term warranty to ensure peace of mind | - Gel gripping trays to prevent gel slippage |
| - Platinum electrodes are 99.9% pure | - Can be run at higher V for faster separations |
List of Horizontal Electrophoresis Apparatus
(These are short specifications. For full specifications click on the model to visit the brand site)
| Sr. No. | Model | Cat. No. | Gel Width (max.) (in cm) |
Gel Lenght (in cm) |
Max no. of wells |
Std. tray with ready to use system | Warranty | Brand |

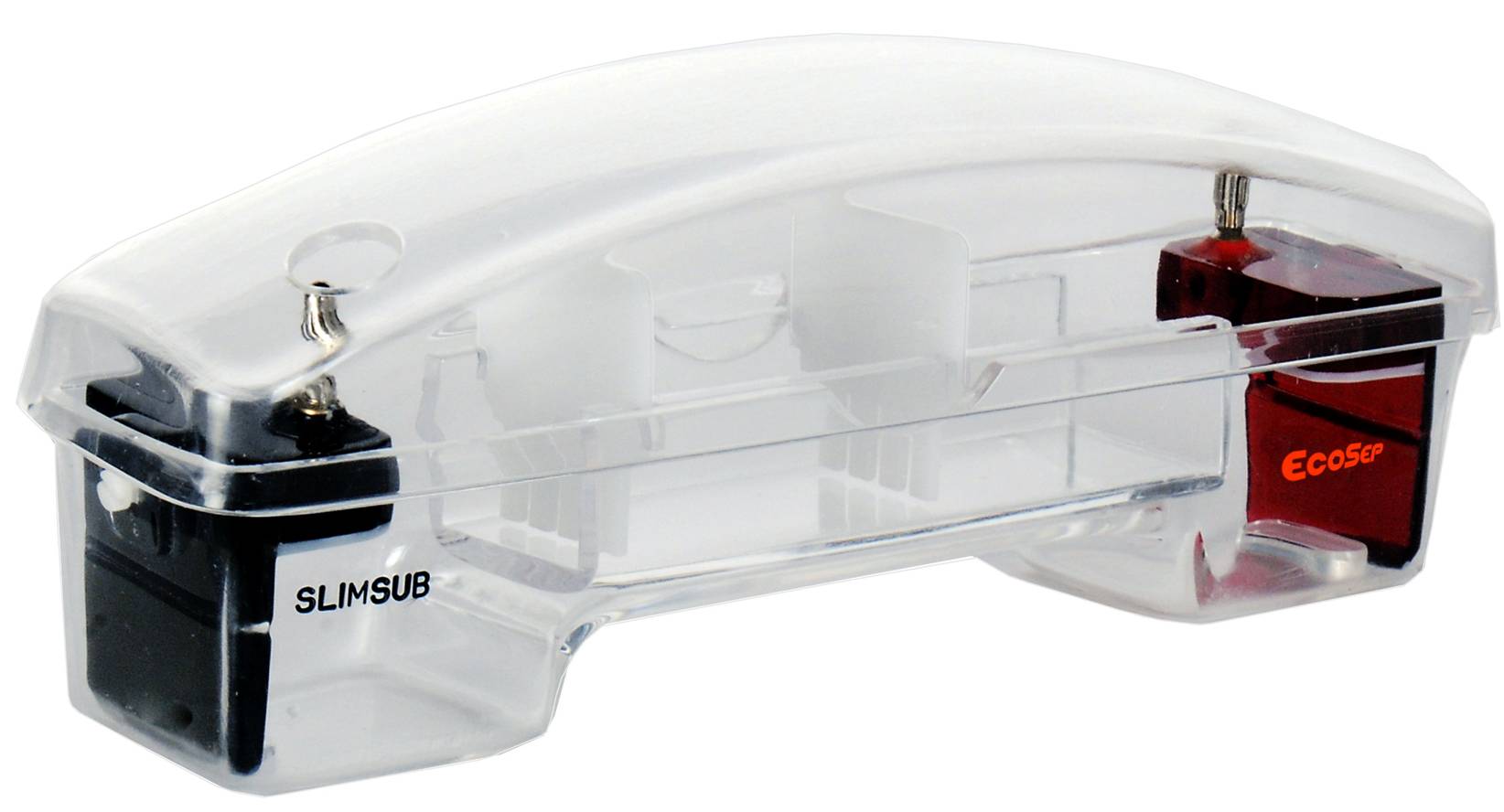

| 1. | Slimsub | E2100031 | 3 | 5/ 10 | 8 | UVO | 1 yr |  |
| 2. | Slimsub | E2100032 | 3 | 5/ 10 | 8 | UVT | 1 yr | |

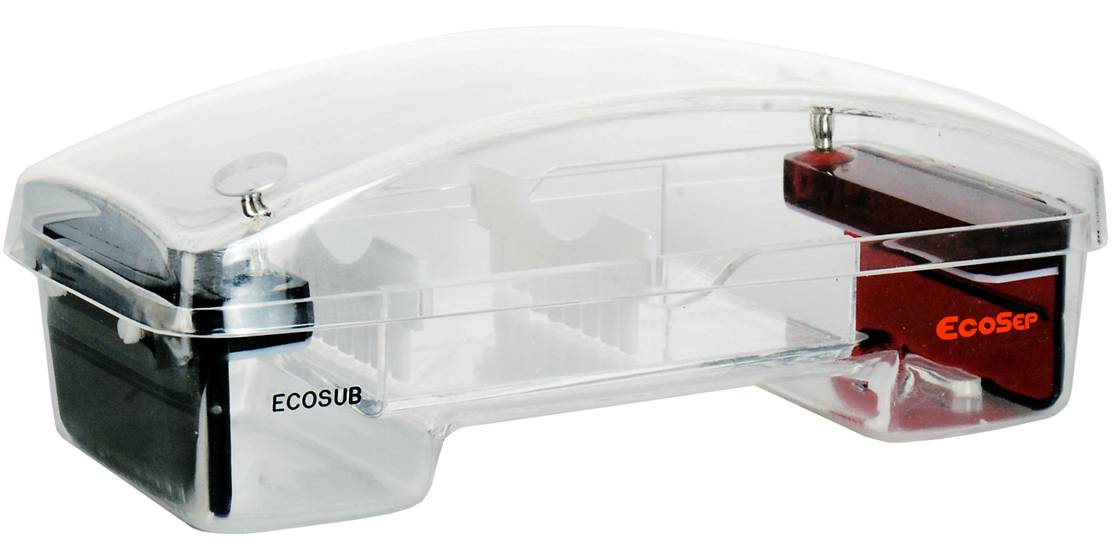

| 3. | Ecosub | E2200071 | 7 | 5/ 10 | 16 | UVO | 1 yr | |
| 4. | Ecosub | E2200072 | 7 | 5/ 10 | 16 | UVT | 1 yr | |

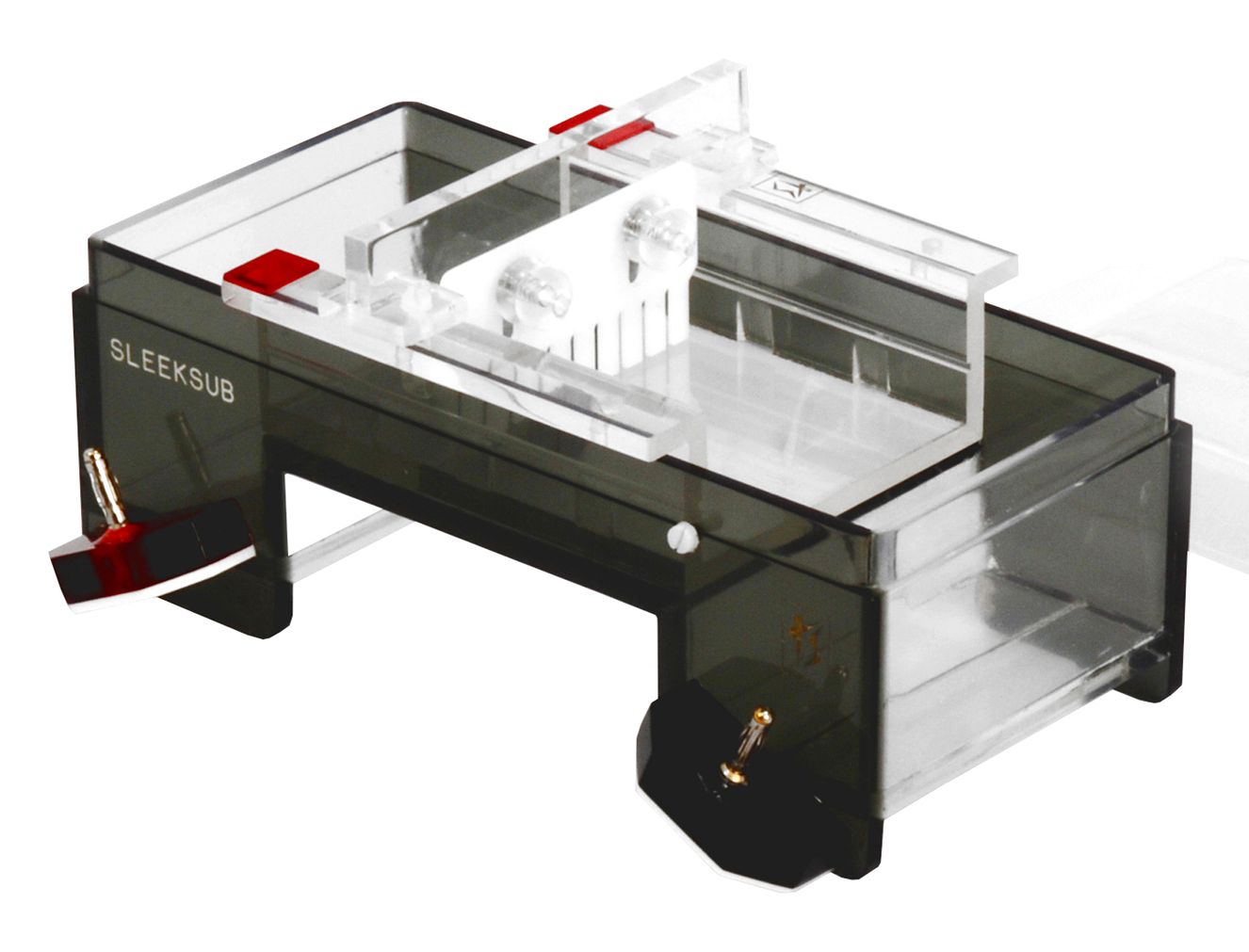

| 5. | Sleeksub | 08-00102 | 7 | 5/ 10/ 15 | 120 | UVT | 3 yr |  |
| 6. | Sleeksub-R | 08-00105 | 7 | 5/ 10/ 15 | 120 | UVT | 3 yr | |

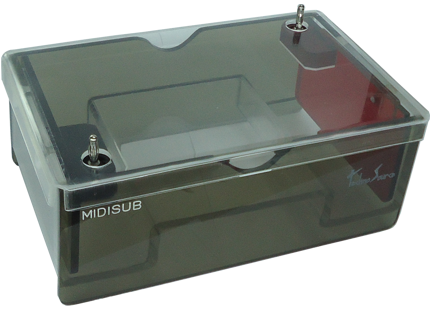

| 7. | Midisub | E2400101 | 10 | 5/ 10 | 30 | UVO | 1 yr | |
| 8. | Midisub | E2400102 | 10 | 5/ 10 | 30 | UVT | 1 yr | |

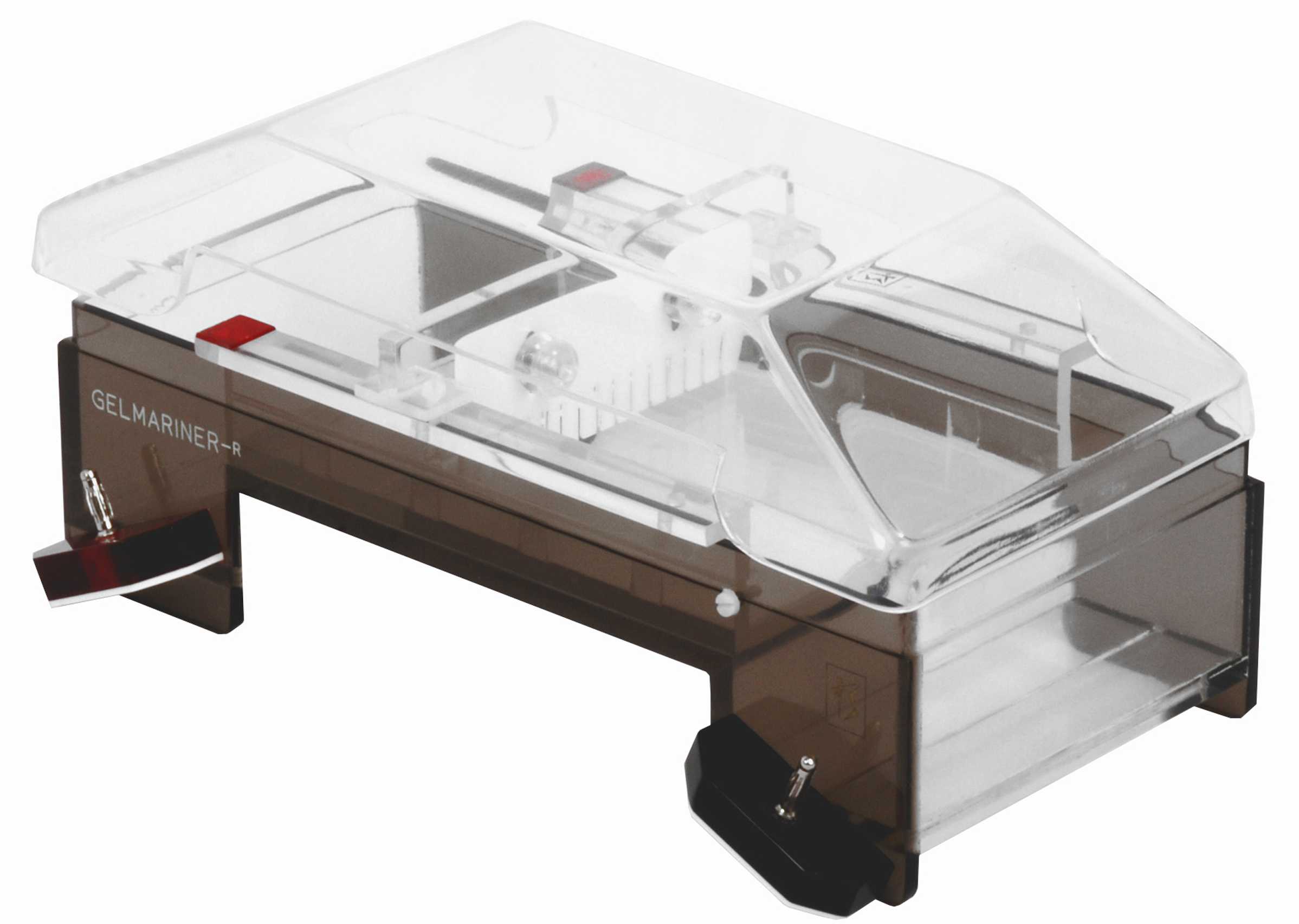

| 9. | Gelmariner | 10-00152 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 1 yr | |
| 10. | Gelmariner-R | 10-00155 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 1 yr | |
| 11. | Gelmariner-RC | 10-00156 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 1 yr | |

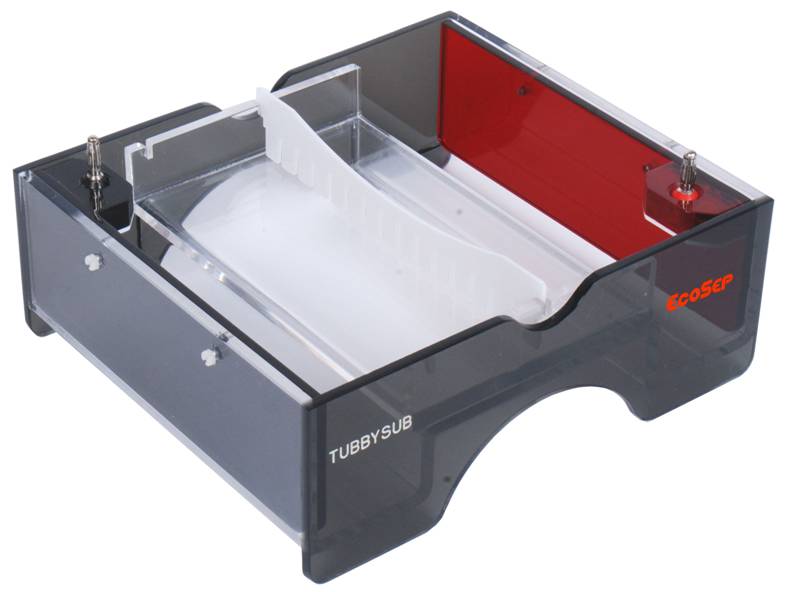

| 12. | Tubbysub | E2300151 | 15 | 5/ 10 | 40 | UVO | 1 yr | |
| 13. | Tubbysub | E2300152 | 15 | 5/ 10 | 40 | UVT | 1 yr | |
| 14. | Greyhound-mini | 09-00203 | 15 | 5/ 10 | 180 | UVT | 3 yr | |

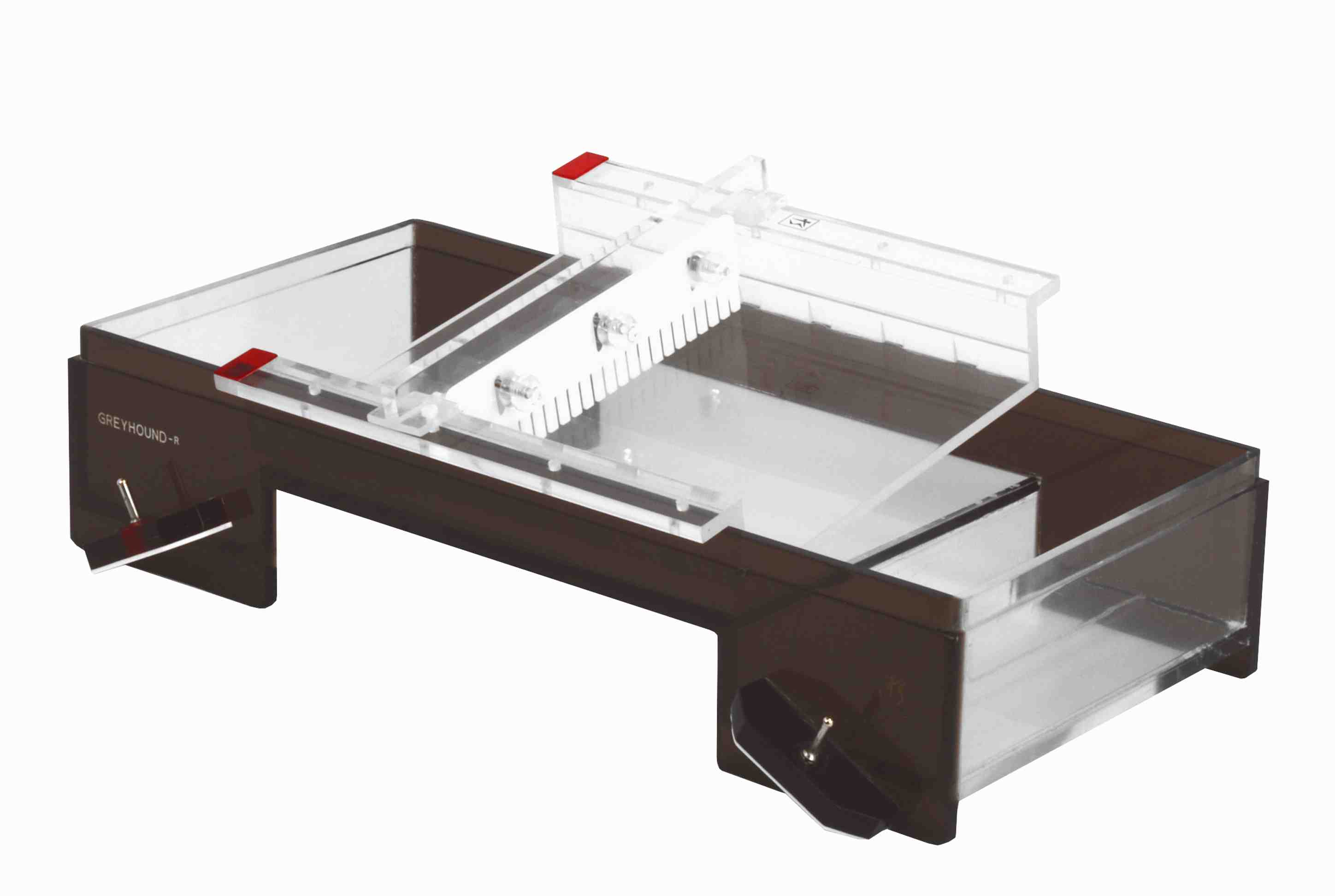

| 15. | Greyhound | 09-00202 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 3 yr | |
| 16. | Greyhound-R | 09-00205 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 3 yr | |
| 17. | Greyhound-RC | 09-00206 | 15 | 5/ 10/ 15/ 20 | 240 | UVT | 3 yr | |
| 18. | Submariner-mini | 17-00233 | 23 | 5/ 10/ 15 | 420 | UVT | 3 yr | |
| 19. | Submariner | 17-00232 | 23 | 5/ 10/ 15/ 20/ 25 | 700 | UVT | 3 yr | |
| 20. | Submariner-R | 17-00235 | 23 | 5/ 10/ 15/ 20/ 25 | 700 | UVT | 3 yr | |
| 21. | Submariner-RC | 17-00236 | 23 | 5/ 10/ 15/ 20/ 25 | 700 | UVT | 3 yr | |
| 22. | Greywhale-mini | 12-00303 | 30 | 5/ 10/ 15 | UVT | 552 | 3 yr | |
| 23. | Greywhale | 12-00302 | 30 | 5/ 10/ 15/ 20/ 25/ 30 | 1288 | UVT | 3 yr | |
| 24. | Greywhale-R | 12-00305 | 30 | 5/ 10/ 15/ 20/ 25/ 30 | 1288 | UVT | 3 yr | |
| 25. | Greywhale-RC | 12-00306 | 30 | 5/ 10/ 15/ 20/ 25/ 30 | 1288 | UVT | 3 yr | |
In addition to the apparatus mentioned we can customize any size of apparatus that is required.
